5BAF Series
Differential Fixed Frequency Filters




Purchase





Description

The 5BAF Series are differential-input low-pass and high-pass filters that are pin-out and package compatible with industry-standard 5B Series signal conditioning modules.Each filter comes factory tuned to user specified corner or center frequency
from 1 Hz to 100 kHz.These filters are ideally suited to sharply limit A/D converter bandwidth to eliminate unwanted signals and noise.

To serve real-world applications,all 5BAF Series filters are configured with a differential input having a common mode rejection ratio of <-70 dB (min.)at 1 kHz.A self contained dc-to-dc converter enables the 5BAF filters to operate from a non-critical +5,±10% volt power source,key in many systems since +5V logic power is readily available.

Features/Benefits:

  • The 10 volt input range with an overall gain of 1 provides an excellent match to both the transducer output and the data acquisition board input.
  • 5BAF modules allow for partitioning between system segments providing a means to minimize ground loops.
  • 5B plug-in compatible provides quick and easy insertion.
  • Factory tuned, no external clocks or adjustments needed.
  • Broad range of corner or center frequencies to meet a wide range of applications.





Applications

  • Vibration analysis
  • Industrial and process control
  • Noise reduction
  • Signal reduction
  • Test systems

Available Low-Pass Models:

5BAF-LPBE8
8-pole Bessel
5BAF-LPBU8
8-pole Butterworth
5BAF-LPBE6
6-pole Bessel
5BAF-LPBU6
6-pole Butterworth
5BAF-LPBE4
4-pole Bessel
5BAF-LPBU4
4-pole Butterworth

Available High-Pass Models:

5BAF-HPBU8
8-pole Butterworth
5BAF-HPBU6
6-pole Butterworth
5BAF-HPBU4
4-pole Butterworth

Note:Contact factory for lower frequency,noise or distortion options.



5BAF Series
Low-Pass Butterworth

Fixed Frequency
1 Hz to 100 kHz

Model 5BAF-LPBU8 5BAF-LPBU6 5BAF-LPBU4
Product Specifications
Transfer Function

Size

Range fc

8-Pole, Butterworth

Std. 5B

1.00 Hz to 100 kHz

6-Pole, Butterworth

Std. 5B

1.00 Hz to 100 kHz

4-Pole, Butterworth

Std. 5B

1.00 Hz to 100 kHz

Theoretical Transfer
Characteristics
Click to view
Click to view
Click to view
Passband Ripple
(theoretical)
0.0 dB 0.0 dB 0.0 dB
DC Voltage Gain
(non-inverting)
0 ± 0.1 dB typ 0 ± 0.1 dB typ 0 ± 0.1 dB typ
Differential Gain 1 ± 0.3% 1 ± 0.3% 1 ± 0.3%
Stopband
Attenuation Rate
48 dB/octave 36 dB/octave 24 dB/octave
Accuracy fc ±2% max. ±2% max. ±2% max.
Phase -360° -270° -180°
Filter Attenuation

(theoretical)
0.12 dB        0.80 fc
3.01 dB        1.00 fc
60.0 dB        2.37 fc
80.0 dB        3.16 fc
0.29 dB        0.80 fc
3.01 dB        1.00 fc
60.0 dB        3.16 fc
80.0 dB        4.46 fc
0.29 dB        0.80 fc
3.01 dB        1.00 fc
60.0 dB        5.62 fc
80.0 dB        10.00 fc
Impendance 1.0 M ohm min. 1.0 M ohm min. 1.0 M ohm min.
Com. Mode
Voltage Range
±20 V ±20 V ±20 V
Com. Mode Rejection
Ratio @ 1 kHz
<-70 dB min. <-70 dB min. <-70 dB min.
Linear Voltage Range ± 10 V peak ± 10 V peak ± 10 V peak
Maximum Safe Voltage
(Power ON or OFF)
±40 V ±40 V ±40 V
Narrow Band Noise
(5 Hz – 100 kHz)
50 µVrms max. 50 µVrms max. 50 µVrms max.


5BAF Series
Low-Pass Butterworth

Fixed Frequency
1 Hz to 100 kHz

Model 5BAF-LPBE8 5BAF-LPBE6 5BAF-LPBE4
Product Specifications
Transfer Function

Size

Range fc

8-Pole, Bessel

Std. 5B

1.00 Hz to 100 kHz

6-Pole, Bessel

Std. 5B

1.00 Hz to 100 kHz

4-Pole, Bessel

Std. 5B

1.00 Hz to 100 kHz

Theoretical Transfer
Characteristics
Click to view
Click to view
Click to view
Passband Ripple
(theoretical)
0.0 dB 0.0 dB 0.0 dB
DC Voltage Gain
(non-inverting)
0 ± 0.1 dB typ 0 ± 0.1 dB typ 0 ± 0.1 dB typ
Differential Gain 1 ± 0.3% 1 ± 0.3% 1 ± 0.3%
Stopband
Attenuation Rate
48 dB/octave 36 dB/octave 24 dB/octave
Accuracy fc ±2% max. ±2% max. ±2% max.
Phase -182° -155° -121°
Filter Attenuation

(theoretical)
1.91 dB        0.80 fc
3.01 dB        1.00 fc
60.0 dB        4.52 fc
80.0 dB        6.07 fc
1.89 dB        0.80 fc
3.01 dB        1.00 fc
60.0 dB        5.41 fc
80.0 dB        7.99 fc
1.86 dB        0.80 fc
3.01 dB        1.00 fc
60.0 dB        8.48 fc
80.0 dB        15.12 fc
Impendance 1.0 M ohm min. 1.0 M ohm min. 1.0 M ohm min.
Com. Mode
Voltage Range
±20 V ±20 V ±20 V
Com. Mode Rejection
Ratio @ 1 kHz
<-70 dB min. <-70 dB min. <-70 dB min.
Linear Voltage Range ± 10 V peak ± 10 V peak ± 10 V peak
Maximum Safe Voltage
(Power ON or OFF)
±40 V ±40 V ±40 V
Narrow Band Noise
(5 Hz – 100 kHz)
50 µVrms max. 50 µVrms max. 50 µVrms max.


5BAF Series
High-Pass Butterworth

Fixed Frequency
1 Hz to 100 kHz

Model 5BAF-HPBU8 5BAF-HPBU6 5BAF-HPBU4
Product Specifications
Transfer Function

Size

Range fc

8-Pole, Butterworth

Std. 5B

1.00 Hz to 100 kHz

6-Pole, Butterworth

Std. 5B

1.00 Hz to 100 kHz

4-Pole, Butterworth

Std. 5B

1.00 Hz to 100 kHz

Theoretical Transfer
Characteristics
Click to view
Click to view
Click to view
Passband Ripple
(theoretical)
0.0 dB 0.0 dB 0.0 dB
DC Voltage Gain
(non-inverting)
0 ± 0.1 dB to 100kHz 0 ± 0.1 dB to 100kHz 0 ± 0.1 dB to 100kHz
Differential Gain 1 ± 0.3% 1 ± 0.3% 1 ± 0.3%
Stopband
Attenuation Rate
48 dB/octave 36 dB/octave 24 dB/octave
Small Signal Bandwidth (-6 dB) 1 MHz (-6 dB) 1 MHz (-6 dB) 1 MHz
Power Bandwidth 120 kHz 120 kHz 120 kHz
Accuracy fc ±2% max. ±2% max. ±2% max.
Phase -360° -270° -180°
Filter Attenuation

(theoretical)
80.0 dB        0.31 fc
60.0 dB        0.42 fc
3.01 dB        1.00 fc
00.0 dB        2.00 fc
80.0 dB        0.21 fc
60.0 dB        0.32 fc
3.01 dB        1.00 fc
00.0 dB        2.50 fc
80.0 dB        0.10 fc
60.0 dB        0.18 fc
3.01 dB        1.00 fc
00.0 dB        4.00 fc
Impendance 1.0 M ohm min. 1.0 M ohm min. 1.0 M ohm min.
Com. Mode
Voltage Range
±20 V ±20 V ±20 V
Com. Mode Rejection
Ratio @ 1 kHz
<-70 dB min. <-70 dB min. <-70 dB min.
Linear Voltage Range ± 10 V peak ± 10 V peak ± 10 V peak
Maximum Safe Voltage
(Power ON or OFF)
±40 V ±40 V ±40 V
Narrow Band Noise
(5 Hz – 100 kHz)
100 µVrms max. 100 µVrms max. 100 µVrms max.


Specifications

Analog Input Characteristics 1
See transfer function specifications

Analog Output Characteristics 1,2:

  • Impedance (Closed Loop):
    <1 ohm typ. 10 ohm max.
  • Linear Operating Range: ± 10V pk
  • Maximum Current: ± 2.0 mA
  • Offset Voltage: ±3 mV typ.
  • Offset Temp. Coeff.: 100 µV / °C
  • Gain Drift: ± 30 ppm/°C
  • Output Load: See note 3
Power Supply (± Vs)
  • Rated Voltage: +5V ± 0.5 Vdc
  • Quiescent Current:
    Typ. Max.
    8P 113mA 150mA
    6P 101mA 127mA
    4P 75mA 98mA

Temperature

  • Operating: -25 to+85°C
  • Storage: -40 to+85°C
Notes:
  1. Input and output signal voltage referenced to I/O COM.
  2. Output is short circuit protected to common. DO NOT CONNECT TO +5V or POWER COM.
  3. Output can drive a series 1.5 k ohm resistor and 0.0022 mF capacitor without slew rate limiting with a ± 10 V square wave input.
  4. How to specify Corner Frequencies:
    Corner frequencies are specified by attaching a three digit frequency designator to the basic model number. Corner frequencies can range from 1 Hz to 50 kHz.

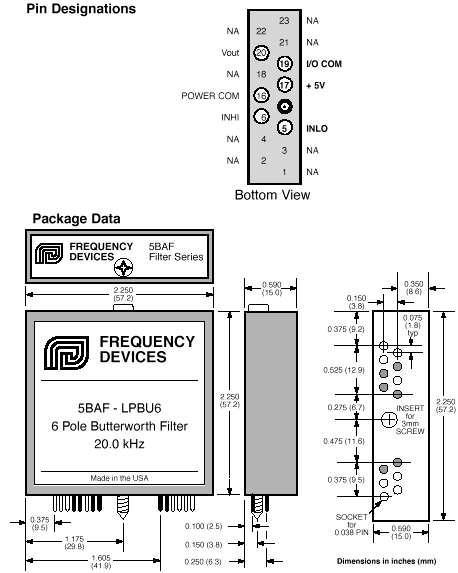

Pin-Out and Package Data


Ordering Information
